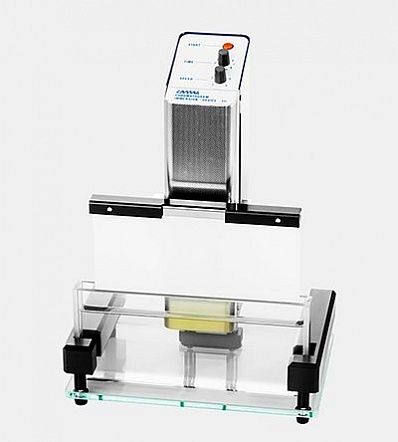

The CAMAG Chromatogram Immersion Device 3 is used for automated dipping. TLC/HPTLC plates are immersed with uniform vertical speed into derivatization reagents or solutions for plate impregnation
For proper reagent transfer, the chromatogram must be immersed and withdrawn at a controlled uniform speed. By maintaining a well defined vertical speed and immersion time, derivatization conditions can be standardized and «tide marks», which can interfere with densitometric evaluation, are avoided.
Key Features:
• Uniform vertical speed
• Immersion time selectable
• The device can be set to accommodate 10 cm and 20 cm plate height
• Battery operated, independent of power supply
You can purchase additional accessories to CAMAG Chromatogram Immersion Device 3:
022.6627 Dip tank (sintered sheet glass) for plates 20x20 cm, with lid
022.6628 Dip tank (sintered sheet glass) for plates 20x10 cm, with lid
022.6622 Lid, polyethylene, for dip tanks 20x10 cm and 20x20 cm
022.6619 Bench top rack for three dip tanks
022.6606 CAMAG Chromatogram Immersion Device 3 for TLC and HPTLC plates up to 20x20 cm
without dip tanks
For proper reagent transfer, the chromatogram must be immersed and withdrawn at a controlled uniform speed. By maintaining a well defined vertical speed and immersion time, derivatization conditions can be standardized and «tide marks», which can interfere with densitometric evaluation, are avoided.
Key Features:
• Uniform vertical speed
• Immersion time selectable
• The device can be set to accommodate 10 cm and 20 cm plate height
• Battery operated, independent of power supply
You can purchase additional accessories to CAMAG Chromatogram Immersion Device 3:
022.6627 Dip tank (sintered sheet glass) for plates 20x20 cm, with lid
022.6628 Dip tank (sintered sheet glass) for plates 20x10 cm, with lid
022.6622 Lid, polyethylene, for dip tanks 20x10 cm and 20x20 cm
022.6619 Bench top rack for three dip tanks
