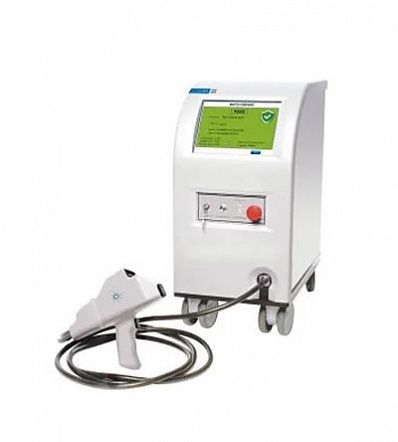

The Agilent RapID is a portable, wheeled system for raw material testing when working with the most challenging opaque containers. RapID addresses pharmaceutical ingredients and common excipients in most containers
Unique to Agilent, our proprietary spatially offset Raman spectroscopy (SORS) technology enables identification of most common materials through unopened opaque packaging, unlike conventional handheld Raman devices. The Agilent RapID Raman system is the fastest way to verify pharmaceutical raw materials and the most cost-effective means for high throughput or 100% testing.

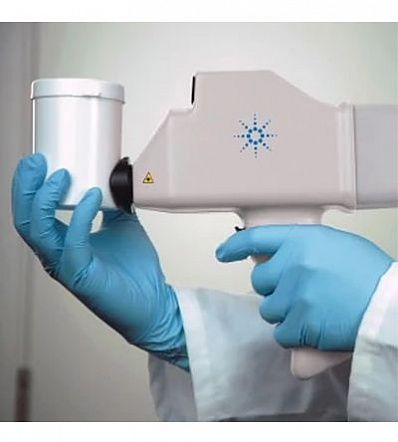

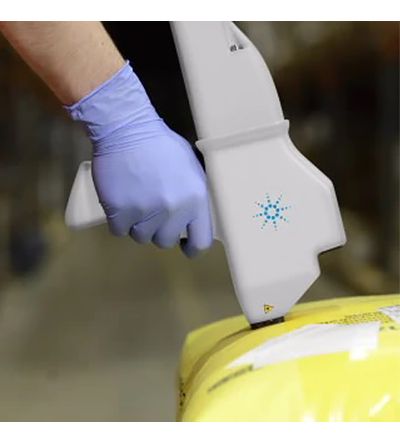

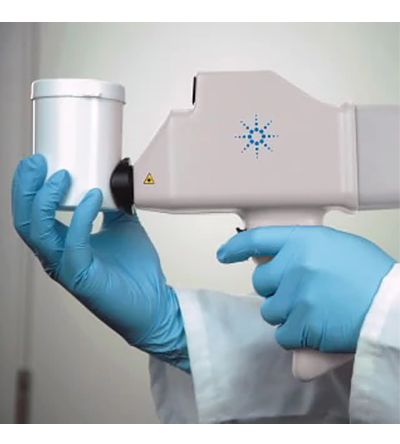

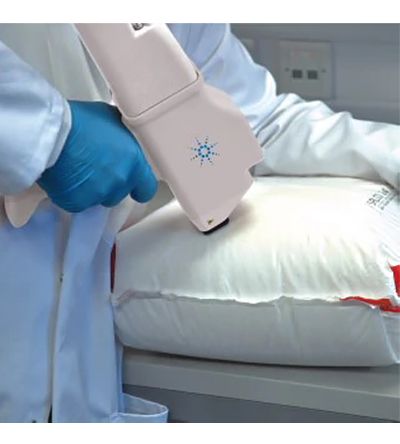

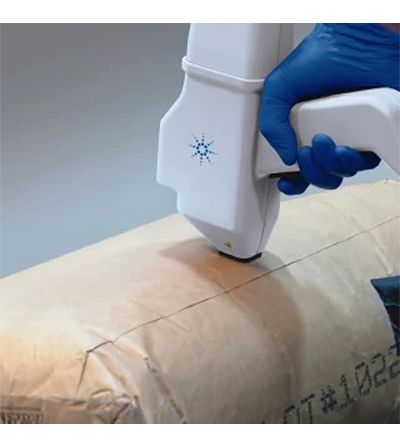

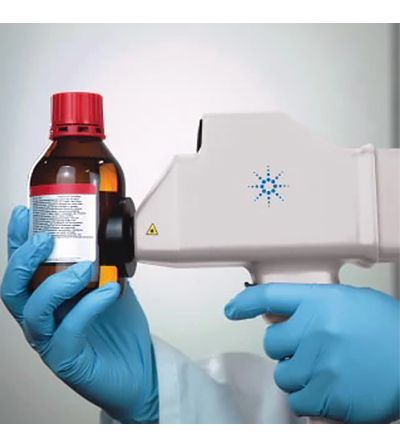

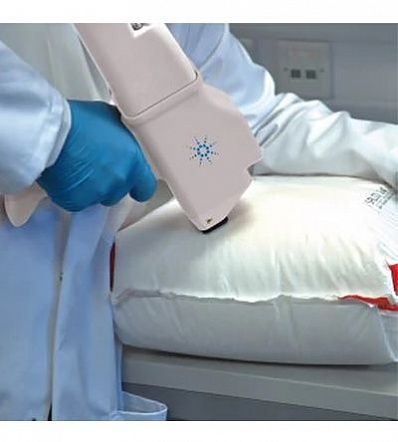

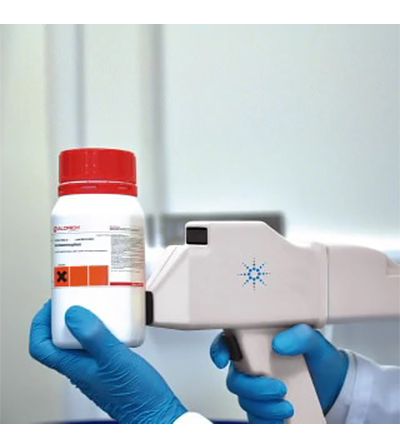

The Agilent RapID system does everything conventional handheld Raman systems do but adds the capability to identify materials through colored glass, opaque plastics, flexible intermediate bulk containers (FIBCs), and multilayer paper sacks. RapID even works through some blue barrels.
System specifications:
Dimensions |
Width 394 mm (15.5 inches) Height 693 mm (27.3 inches) Depth 630 mm (24.8 inches) |
Laser |
Class 3B 830 nm |
Power |
90–132/180–264 VAC, 47–63 Hz
|
Software |
Includes RapID software 21 CFR Part 11 compliant |
Hardware |
Touch-screen operated Integral bar code scanner (1D and 2D) |
Connectivity |
Domain/network through RJ-45 or WiFi USB 2.0 |
Производитель: Agilent Technologies
Назначение: фармацевтический анализ
Unique to Agilent, our proprietary spatially offset Raman spectroscopy (SORS) technology enables identification of most common materials through unopened opaque packaging, unlike conventional handheld Raman devices. The Agilent RapID Raman system is the fastest way to verify pharmaceutical raw materials and the most cost-effective means for high throughput or 100% testing.
The Agilent RapID system does everything conventional handheld Raman systems do but adds the capability to identify materials through colored glass, opaque plastics, flexible intermediate bulk containers (FIBCs), and multilayer paper sacks. RapID even works through some blue barrels.
System specifications:
Dimensions |
Width 394 mm (15.5 inches) Height 693 mm (27.3 inches) Depth 630 mm (24.8 inches) |
Laser |
Class 3B 830 nm |
Power |
90–132/180–264 VAC, 47–63 Hz
|
Software |
Includes RapID software 21 CFR Part 11 compliant |
Hardware |
Touch-screen operated Integral bar code scanner (1D and 2D) |
Connectivity |
Domain/network through RJ-45 or WiFi USB 2.0 |
